CU2-15 - Mechanisms

CFTH - Mechanism with fusible link

The unlocking mechanism CFTH automatically unlatches the damper blade when the temperature in the duct rises above 72°C. The damper can also be unlocked and reset manually.
  1. Unlocking button
  2. Resetting handle
  3. Cable entrance

Variants

  • CFTH
    Mechanism with fusible link

Options - Switch

  • FCU
    Limit switch 'closed'
  • FDCU
    Limit switch 'open' (order with FCU)
  • FDCB
    Auxiliary limit switch 'closed'

Unlocking

  • manual unlocking
    use the unlocking button (1).
  • automatic unlocking
    when the fusible link melts at 72° C.
  • remote unlocking
    n/a

Resetting

  • manual resetting
    use the enclosed Hex key and turn clockwise(2).
  • motorised resetting
    n/a

Documents Scroll down/right to view the entire table

File Type Format Date
Technical product brochure KIT CFTHTechnical datasheet KITpdf [5,301.35 kB]21/06/2013
Technical product brochure KIT FDC_CFTHTechnical datasheet KITpdf [2,330.25 kB]21/06/2013
Technical product brochure KIT FTH72Technical datasheet KITpdf [7,124.13 kB]21/06/2013

ONE - Spring return actuator for remote control

The spring-return actuator ONE is designed to easily operate Rf-t fire dampers of all sizes, automatically or remotely. Five models are available, 24 or 230 volt, with FDCU or FDCB position switches; and 24 volt with plug (ST).
  1. Unlocking button
  2. Blade position indicator
  3. LED
  4. Battery compartment to reset motor
  5. Plug (ST)

Variants

  • ONE T 24 FDCU
    Spring return actuator ONE 24V (with fusible link) + unipolar beginning- and end-of-range switch
  • ONE T 24 FDCB
    Spring return actuator ONE 24V (with fusible link) + bipolar beginning- and end-of-range switch
  • ONE T 230 FDCU
    Spring return actuator ONE 230V (with fusible link) + unipolar beginning- and end-of-range switch
  • ONE T 230 FDCB
    Spring return actuator ONE 230V (with fusible link) + bipolar beginning- and end-of-range switch
  • ONE T 24 FDCU ST
    Spring return actuator ONE 24V (with fusible link) + unipolar beginning- and end-of-range switch and plug (ST)

Unlocking

  • manual unlocking
    shortly press the unlocking button (1) once.
  • automatic unlocking
    the fusible link reacts as soon as the temperature in the duct reaches 72°C.
  • remote unlocking
    by interrupting the power supply.

Resetting

  • manual resetting
    open the battery compartment (4) and press a 9V battery against the contact springs. Hold this position until the LED (3) emits a continuous light. Check whether the indicator (2) shows that the damper blade is in the open position. Remove the battery, the LED fades away. Close the battery compartment.
  • motorised resetting
    switch off the power supply for at least 5 sec. Power the actuator (respect the prescribed voltage) for at least 75 sec. The resetting stops automatically when the end of range is reached (damper open).

Documents Scroll down/right to view the entire table

File Type Format Date
Technical product brochure KIT FUS72_ONETechnical datasheet KITpdf [2,629.91 kB]26/09/2017
Technical product brochure KIT ONETechnical datasheet KITpdf [6,386.08 kB]29/01/2018
ONE leafletMarketingpdf [352.13 kB]25/03/2019
ONE presentationMarketingpdf [2,561.06 kB]27/06/2017

BFL(T) - Remotely controlled spring return actuator

The spring return actuator BFL(T) is specially designed to remotely control fire dampers. The BFL(T) model is intended for fire dampers with smaller dimensions (ø ≤ 400 mm or W+H ≤ 1200 mm/1400 mm for CU-LT, CU-LT-1s).
  1. Locking button
  2. Plug (ST)
  3. Access for manual resetting
  4. Thermo-electric tripping device (T)

Variants

  • BFL24
    Spring return actuator BFL 24V
  • BFL24-ST
    Spring return actuator BFL 24V with plug (ST)
  • BFLT24
    Spring return actuator BFL 24V with thermo-electric fuse (T)
  • BFLT24-ST
    Spring return actuator BFL 24V with thermo-electric fuse (T) and plug (ST)
  • BFL230
    Spring return actuator BFL 230V
  • BFLT230
    Spring return actuator BFL 230V with thermo-electric fuse (T)

Options - Switch

  • SN2 BFL/BFN
    Auxiliary limit switch 'open/closed'

Unlocking

  • manual unlocking
    place the locking button on “unlock”. (In case of BFLT: the damper can alternatively be unlocked by pushing the “test” button on the thermo-electric fuse)
  • automatic unlocking
    the thermo-electric fuse reacts as soon as the temperature reaches 72°C (type BFLT).
  • remote unlocking
    by interrupting the power supply.

Resetting

  • manual resetting
    turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock”
  • motorised resetting
    switch off the power supply for at least 10 seconds. Supply the actuator (respect the prescribed voltage) for at least 75 seconds. The resetting stops automatically when the end of range is reached (damper open) - it takes about 60 seconds to reset the damper - or when the power supply is interrupted.

Documents Scroll down/right to view the entire table

File Type Format Date
Technical product brochure KIT SN2Technical datasheet KITpdf [663.53 kB]22/12/2010
Technical product brochure KIT BFLTTechnical datasheet KITpdf [2,801.31 kB]28/08/2015

BFN(T) - Remotely controlled spring return actuator

The spring return actuator BFN(T) is specially designed to remotely control fire dampers. The BFN(T) model is intended for fire dampers with large dimensions (ø > 400 mm (CR2) or W+H > 1200 mm (CU2, CA2, CU2-15, CU4)) or for dampers CU-LT(-1s), CR60, CR120 with a production date before 1 July 2015.

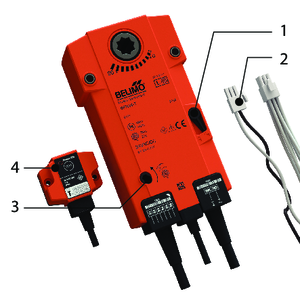

  1. Locking button
  2. Plug (ST)
  3. Access for manual resetting
  4. Thermo-electric tripping device (T)

Variants

  • BFN24
    Spring return actuator BFN 24V
  • BFN24-ST
    Spring return actuator BFN 24V with plug (ST)
  • BFNT24
    Spring return actuator BFN 24V with thermo-electric fuse (T)
  • BFNT24-ST
    Spring return actuator BFN 24V with thermo-electric fuse (T) and plug (ST)
  • BFN230
    Spring return actuator BFN 230V
  • BFNT230
    Spring return actuator BFN 230V with thermo-electric fuse (T)

Options - Switch

  • SN2 BFL/BFN
    Auxiliary limit switch 'open/closed'

Unlocking

  • manual unlocking
    place the locking button on “unlock”. (In case of BFNT: the damper can alternatively be unlocked by pushing the “test” button on the thermo-electric fuse)
  • automatic unlocking
    the thermo-electric fuse reacts as soon as the temperature reaches 72°C (type BFNT).
  • remote unlocking
    by interrupting the power supply.

Resetting

  • manual resetting
    turn the enclosed handle anti-clockwise. To block the motor, place the locking button on “lock”
  • motorised resetting
    switch off the power supply for at least 10 seconds. Supply the actuator (respect the prescribed voltage) for at least 75 seconds. The resetting stops automatically when the end of range is reached (damper open) - it takes about 60 seconds to reset the damper - or when the power supply is interrupted.

Documents Scroll down/right to view the entire table

File Type Format Date
Technical product brochure KIT SN2Technical datasheet KITpdf [663.53 kB]22/12/2010
Technical product brochure KIT BFNTTechnical datasheet KITpdf [3,050.58 kB]28/08/2015
