AVANTAGE DP 1V120 - Dimensions

Range and dimensions

Hn\Wn [mm]350x385700x1075

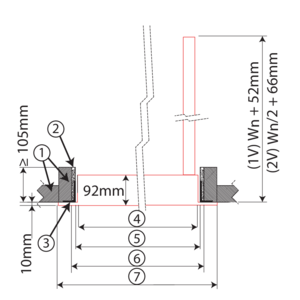

  • 1. Refractory material
  • 2. Sealing if mounting frame
  • 3. Mounting frame (optional)
  • 4. Nominal dimensions shutter Wn x Hn
  • 5. Built-in dimensions without mounting frame (Wn+10) x (Hn+10)mm
  • 6. Built-in dimensions with mounting frame (Wn+20) x (Hn+20)mm
  • 7. Overall (outside) dimensions of the shutter (Wn+54) x (Hn+54)mm

Weights Scroll down/right to view the entire table

Hn\Wn [mm]350400450500550600650700
385kg7,98,38,89,29,710,311,011,6
415kg8,38,89,49,910,411,011,512,0
445kg8,69,29,710,310,811,411,912,5
475kg8,99,510,010,611,211,812,312,9
505kg9,29,810,411,011,512,112,713,3
535kg9,410,110,711,311,912,513,113,8
565kg9,710,311,011,612,312,913,514,2
595kg10,010,611,311,912,613,313,914,6
625kg10,411,011,612,212,913,614,315,0
655kg10,711,311,912,513,314,014,715,4
685kg10,911,512,112,813,614,315,115,8
715kg11,211,812,413,113,914,715,416,2
745kg11,412,112,713,414,215,015,816,6
775kg11,612,313,013,714,615,416,217,0
805kg11,912,613,313,914,915,716,617,4
835kg12,112,813,614,215,216,117,017,8
865kg12,413,113,814,515,516,417,318,2
895kg12,613,414,114,815,916,817,718,6
925kg12,913,614,415,116,217,218,119,0
955kg13,113,914,715,416,517,518,519,5
985kg13,414,215,015,716,917,918,919,9
1015kg13,614,415,316,017,218,219,320,3
1045kg13,914,715,516,217,518,619,620,7
1075kg14,115,015,816,517,818,920,021,1
